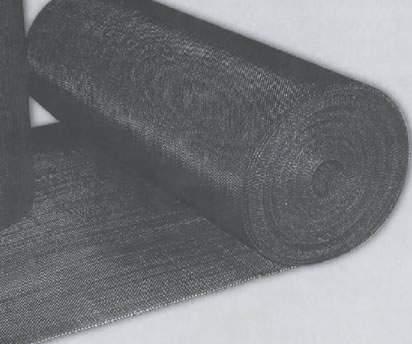

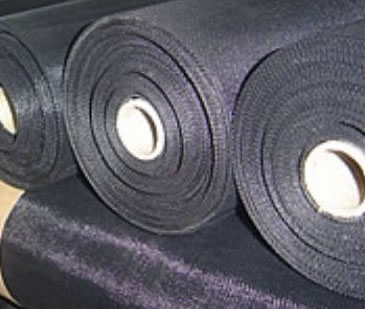

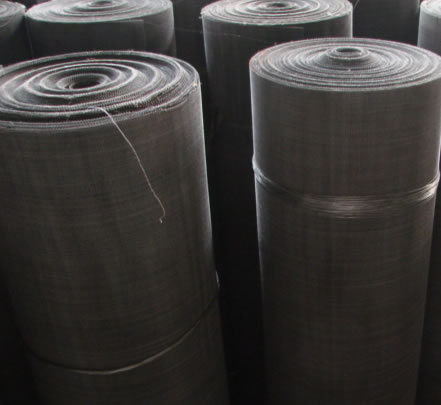

BLACK WIRE CLOTH

Material: low-carbon steel wire

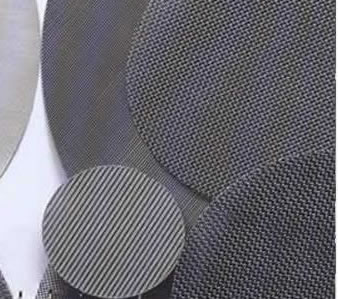

Property: It can be punch to various kinds of wire mesh pieces for filtering.
Weaving methods: plain woven and dutch woven
Uses: Black Wire Cloth mainly serves as filter wire cloth in rubber industry, plastics industry and grain industry.
Packing and special sizes black wire cloth is available at request







Mesh/inch	Wire Dia.mm	Aperture(mm)
10meshx10mesh	wire dia.0.60mm	1.94mm
16meshx16mesh	wire dia.0.45mm	1.138mm
20meshx20mesh	wire dia.0.40mm	0.87mm
30meshx30mesh	wire dia.0.25mm	0.59mm
40meshx40mesh	wire dia.0.21mm	0.43mm
50meshx50mesh	wire dia.0.17mm	0.338mm
60meshx60mesh	wire dia.0.15mm	0.273mm
70meshx70mesh	wire dia.0.14mm	0.223mm
80meshx80mesh	wire dia.0.14mm	0.178mm

Width: (0.6m-1.2m)
MeshxMesh	Wire Dia. x Wire Dia.
12meshx64mesh	wire dia.0.60x wire dia.0.40mm
14meshx88mesh	wire dia.0.45x wire dia.0.35mm
30meshx150mesh	wire dia.0.30 x wire dia.0.23mm
