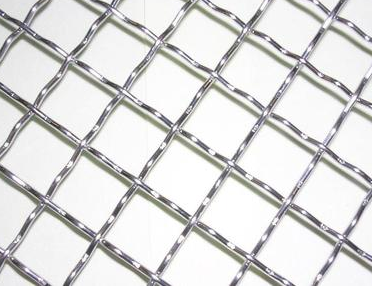

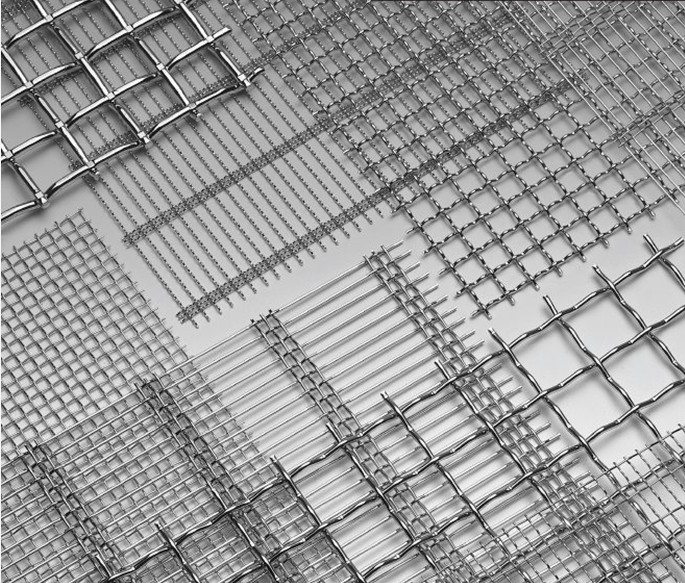

CRIMPED WIRE MESH |
Material:stainless steel wire,steel wire,etc.

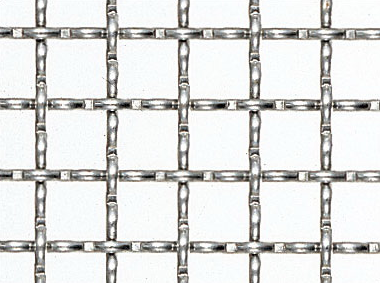

Weaving methods:pre-woven. single crimped plain weave,double crimped plain weave,single crimped diagonal weave, double crimped diagonal weave.
Property:Ginning to provide a stable network sructure and good strength.
Use:Crimped wire mesh is used as fence or filters in a lot of industries; Heavy Duty Crimped wire Mesh are also named Quarry Mesh, it is mostly used as screen in mining, coal factory, construction and other industries.
Packing and special sizes crimped wire mesh is available at request
Wire Gauge (BWG) | Aperture Size ( mm) | Wire Dia. ( mm) | Weight(Kg/ m2) |
8 | 30 | 4.06 | 6.00 |
8 | 25 | 4.06 | 7.00 |
8 | 20 | 4.06 | 8.00 |
8 | 15 | 4.06 | 1.00 |
8 | 12 | 4.06 | 13.00 0 |
8 | 10 | 4.06 | 15.00 0 |
10 | 30 | 3.25 | 4.00 |
10 | 25 | 3.25 | 4.70 |
10 | 20 | 3.25 | 5.80 |
10 | 15 | 3.25 | 7.40 |
10 | 10 | 3.25 | 10.00 0 |
12 | 30 | 2.64 | 2.70 |
12 | 12 | 2.64 | 3.20 |
12 | 20 | 2.64 | 3.90 |
12 | 15 | 2.64 | 5.00 |
12 | 10 | 2.64 | 7.00 |
14 | 20 | 2.03 | 2.38 |
14 | 15 | 2.03 | 3.10 |
14 | 12 | 2.03 | 3.70 |
14 | 10 | 2.03 | 4.35 |
14 | 8 | 2.03 | 5.22 |
14 | 6 | 2.03 | 6.52 |
14 | 4 | 2.03 | 8.68 |
14 | 3 | 2.03 | 10.40 0 |
16 | 15 | 1.63 | 2.03 |
16 | 10 | 1.63 | 2.90 |
16 | 8 | 1.63 | 3.50 |
16 | 6 | 1.63 | 4.40 |
16 | 4 | 1.63 | 5.99 |
18 | 12 | 1.22 | 1.43 |
18 | 10 | 1.22 | 1.68 |
18 | 8 | 1.22 | 2.05 |
18 | 6 | 1.22 | 2.62 |
18 | 4 | 1.22 | 3.62 |
18 | 3 | 1.22 | 4.48 |
20 | 12 | 0.91 | 0.82 |
20 | 10 | 0.91 | 0.96 |
20 | 8 | 0.91 | 1.18 |
20 | 5 | 0.91 | 1.78 |
20 | 4 | 0.91 | 2.15 |
20 | 3 | 0.91 | 2.69 |
